FlashDeconv: Fast Spatial Deconvolution via Structure-Preserving Sketching

This notebook demonstrates how to use FlashDeconv for spatial transcriptomics cell type deconvolution through the unified omicverse.space.Deconvolution API.

Why FlashDeconv?

  • Scalability: Handles millions of spots (Visium HD, Slide-seq) without GPU requirement

  • Speed: Uses randomized sketching for O(n) complexity instead of O(n²)

  • Spatial awareness: Incorporates graph Laplacian regularization for spatially smooth results

  • Integration: scanpy-style API, seamlessly works with AnnData objects

Inputs and Outputs

  • Inputs:

    • Spatial transcriptomics data (10x Visium, Visium HD, Slide-seq, etc.)

    • Single-cell reference with cell type annotations

  • Outputs:

    • Cell type proportions per spot (stored in adata.obsm['flashdeconv'])

    • Dominant cell type per spot

    • Compatible adata_cell2location object for downstream analysis

Workflow Overview

  1. Load scRNA-seq reference and spatial data (~1 min)

  2. Run FlashDeconv deconvolution (~2-5 min for standard Visium)

  3. Visualize results (~5 min)

import omicverse as ov
import scanpy as sc
import matplotlib.pyplot as plt

ov.plot_set(font_path='Arial')

🔬 Starting plot initialization...
Using already downloaded Arial font from: /tmp/omicverse_arial.ttf
Registered as: Arial
🧬 Detecting GPU devices…
✅ NVIDIA CUDA GPUs detected: 1
    • [CUDA 0] NVIDIA H100 80GB HBM3
      Memory: 79.1 GB | Compute: 9.0

   ____            _     _    __
  / __ \____ ___  (_)___| |  / /__  _____________
 / / / / __ `__ \/ / ___/ | / / _ \/ ___/ ___/ _ \
/ /_/ / / / / / / / /__ | |/ /  __/ /  (__  )  __/
\____/_/ /_/ /_/_/\___/ |___/\___/_/  /____/\___/

🔖 Version: 1.7.9rc1   📚 Tutorials: https://omicverse.readthedocs.io/
✅ plot_set complete.

Step 1: Load Data

1.1 Load scRNA-seq reference

The reference should contain cell type annotations in .obs.

# Load your scRNA-seq reference
# Example: Human lymph node reference
adata_sc = ov.datasets.sc_ref_Lymph_Node()

# Check cell type annotations
print(adata_sc.obs['Subset'].value_counts())

Subset
B_mem               13476
B_naive              8924
T_CD4+_naive         6012
B_Cycling            4765
T_CD4+_TfH           4690
T_CD8+_cytotoxic     3890
T_CD4+_TfH_GC        3653
B_activated          3575
B_GC_LZ              3298
T_CD4+               3059
T_Treg               2958
B_GC_DZ              2500
T_CD8+_CD161+        2294
T_CD8+_naive         2253
NK                   1372
B_plasma             1094
T_TfR                1065
NKT                   896
Endo                  622
ILC                   617
B_preGC               404
T_TIM3+               357
Monocytes             306
DC_pDC                226
B_IFN                 199
DC_cDC2               173
Macrophages_M1        121
Macrophages_M2        110
DC_cDC1               101
FDC                    76
B_GC_prePB             74
DC_CCR7+               42
VSMC                   40
Mast                   18
Name: count, dtype: int64

1.2 Load spatial transcriptomics data

# Load spatial data (example: Visium human lymph node)
adata_sp = sc.datasets.visium_sge(sample_id="V1_Human_Lymph_Node")
adata_sp.obs['sample'] = list(adata_sp.uns['spatial'].keys())[0]
adata_sp.var_names_make_unique()

print(f"Spatial data: {adata_sp.n_obs} spots, {adata_sp.n_vars} genes")

reading /scratch/users/steorra/analysis/omic_test/data/V1_Human_Lymph_Node/filtered_feature_bc_matrix.h5
 (0:00:00)
Spatial data: 4035 spots, 36601 genes

Step 2: Run FlashDeconv Deconvolution

FlashDeconv is integrated into the omicverse.space.Deconvolution class. Simply set method='FlashDeconv'.

Key Parameters

  • sketch_dim: Dimension of sketched space (default: 512). Higher values preserve more information.

  • lambda_spatial: Spatial regularization strength (default: 5000). Higher values encourage smoother spatial patterns.

  • n_hvg: Number of highly variable genes to use (default: 2000).

  • n_markers_per_type: Number of marker genes per cell type (default: 50).

# Initialize the Deconvolution object
decov_obj = ov.space.Deconvolution(
    adata_sc=adata_sc,
    adata_sp=adata_sp
)

# Run FlashDeconv deconvolution
decov_obj.deconvolution(
    method='FlashDeconv',
    celltype_key_sc='Subset',  # Column containing cell type annotations
    flashdeconv_kwargs={
        'sketch_dim': 512,          # Sketch dimension
        'lambda_spatial': 10.0,   # Spatial regularization
        'n_hvg': 3000,              # Number of HVGs
        'n_markers_per_type': 50,   # Markers per cell type
    }
)

Running FlashDeconv with parameters: {'sketch_dim': 512, 'lambda_spatial': 10.0, 'n_hvg': 3000, 'n_markers_per_type': 50}
✓ FlashDeconv deconvolution is done
The deconvolution result is saved in self.adata_cell2location
Cell type proportions are also stored in self.adata_sp.obsm['flashdeconv']

Access Results

Results are stored in multiple locations for compatibility:

  • decov_obj.adata_cell2location: AnnData with cell type proportions as X matrix

  • decov_obj.adata_sp.obsm['flashdeconv']: DataFrame of proportions

  • decov_obj.adata_sp.obs['flashdeconv_dominant']: Dominant cell type per spot

# View the result object
decov_obj.adata_cell2location

AnnData object with n_obs × n_vars = 4035 × 34
    obs: 'in_tissue', 'array_row', 'array_col', 'sample', 'flashdeconv_B_Cycling', 'flashdeconv_B_GC_DZ', 'flashdeconv_B_GC_LZ', 'flashdeconv_B_GC_prePB', 'flashdeconv_B_IFN', 'flashdeconv_B_activated', 'flashdeconv_B_mem', 'flashdeconv_B_naive', 'flashdeconv_B_plasma', 'flashdeconv_B_preGC', 'flashdeconv_DC_CCR7+', 'flashdeconv_DC_cDC1', 'flashdeconv_DC_cDC2', 'flashdeconv_DC_pDC', 'flashdeconv_Endo', 'flashdeconv_FDC', 'flashdeconv_ILC', 'flashdeconv_Macrophages_M1', 'flashdeconv_Macrophages_M2', 'flashdeconv_Mast', 'flashdeconv_Monocytes', 'flashdeconv_NK', 'flashdeconv_NKT', 'flashdeconv_T_CD4+', 'flashdeconv_T_CD4+_TfH', 'flashdeconv_T_CD4+_TfH_GC', 'flashdeconv_T_CD4+_naive', 'flashdeconv_T_CD8+_CD161+', 'flashdeconv_T_CD8+_cytotoxic', 'flashdeconv_T_CD8+_naive', 'flashdeconv_T_TIM3+', 'flashdeconv_T_TfR', 'flashdeconv_T_Treg', 'flashdeconv_VSMC', 'flashdeconv_dominant'
    uns: 'spatial', 'flashdeconv_params'
    obsm: 'spatial', 'flashdeconv'

# View cell type proportions
decov_obj.adata_sp.obsm['flashdeconv'].head()
B_Cycling B_GC_DZ B_GC_LZ B_GC_prePB B_IFN B_activated B_mem B_naive B_plasma B_preGC ... T_CD4+_TfH T_CD4+_TfH_GC T_CD4+_naive T_CD8+_CD161+ T_CD8+_cytotoxic T_CD8+_naive T_TIM3+ T_TfR T_Treg VSMC
AAACAAGTATCTCCCA-1 0.000000 0.142163 0.0 0.0 0.000000 0.0 0.0 0.085327 0.390464 0.0 ... 0.0 0.000000 0.000000 0.0 0.0 0.000000 0.000000 0.00000 0.0 0.040701
AAACAATCTACTAGCA-1 0.000000 0.163051 0.0 0.0 0.000000 0.0 0.0 0.000000 0.116814 0.0 ... 0.0 0.049438 0.176642 0.0 0.0 0.005135 0.000000 0.15238 0.0 0.026961
AAACACCAATAACTGC-1 0.016557 0.130161 0.0 0.0 0.000000 0.0 0.0 0.046586 0.232831 0.0 ... 0.0 0.000000 0.000000 0.0 0.0 0.000000 0.013086 0.00000 0.0 0.054721
AAACAGAGCGACTCCT-1 0.000000 0.172508 0.0 0.0 0.225865 0.0 0.0 0.000000 0.078707 0.0 ... 0.0 0.000000 0.000000 0.0 0.0 0.000000 0.126967 0.00000 0.0 0.000000
AAACAGCTTTCAGAAG-1 0.000000 0.150919 0.0 0.0 0.000000 0.0 0.0 0.403057 0.133602 0.0 ... 0.0 0.000000 0.000000 0.0 0.0 0.000000 0.000000 0.00000 0.0 0.000000

5 rows × 34 columns

Step 3: Visualization

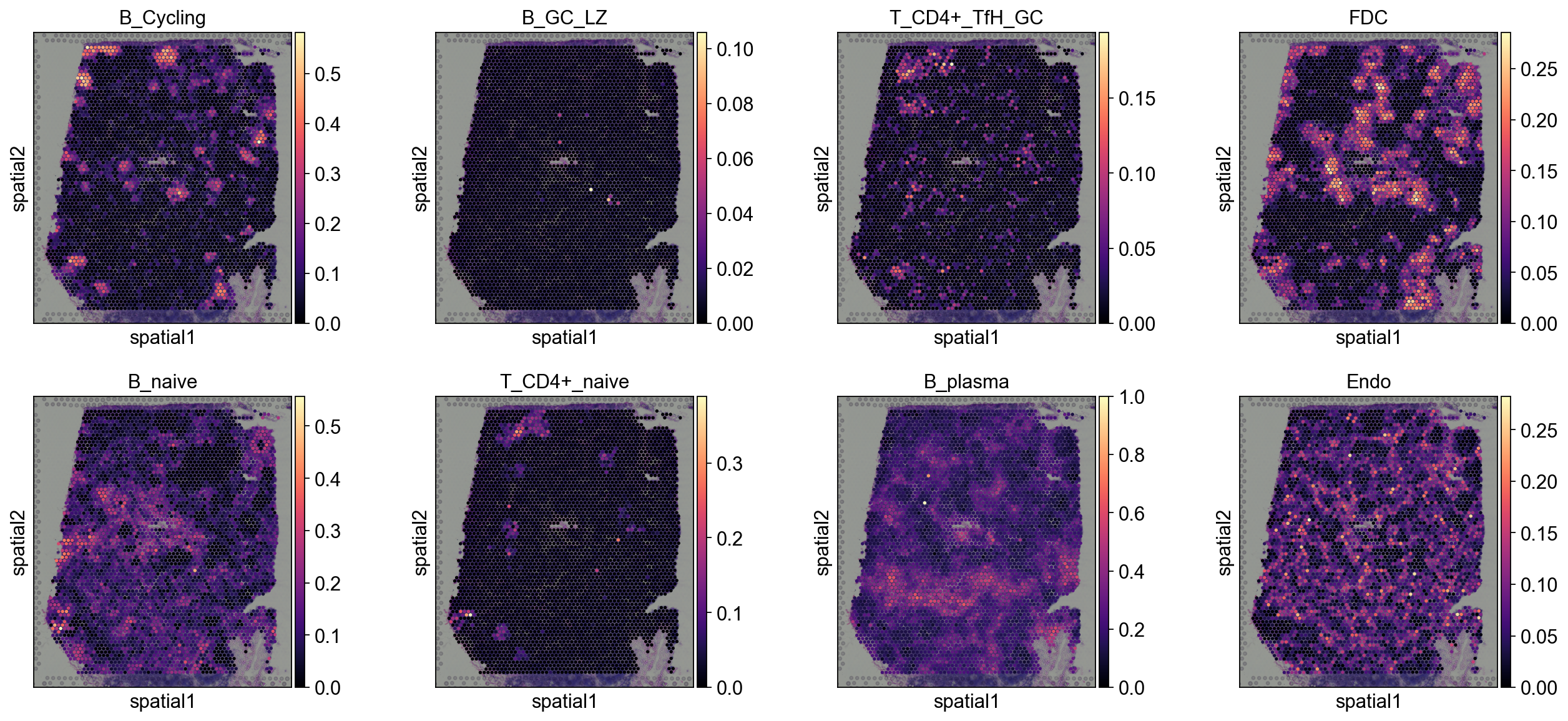

3.1 Spatial heatmap of cell type proportions

# Select cell types to visualize
annotation_list=['B_Cycling', 'B_GC_LZ', 'T_CD4+_TfH_GC', 'FDC',
                'B_naive', 'T_CD4+_naive', 'B_plasma', 'Endo']

# Plot spatial distribution
sc.pl.spatial(
    decov_obj.adata_cell2location,
    cmap='magma',
    color=annotation_list,
    ncols=4,
    size=1.3,
    img_key='hires',
)
../_images/486668cf2c080f8532647bce16a4eca60861b11152551189551a9816ff9df717.png

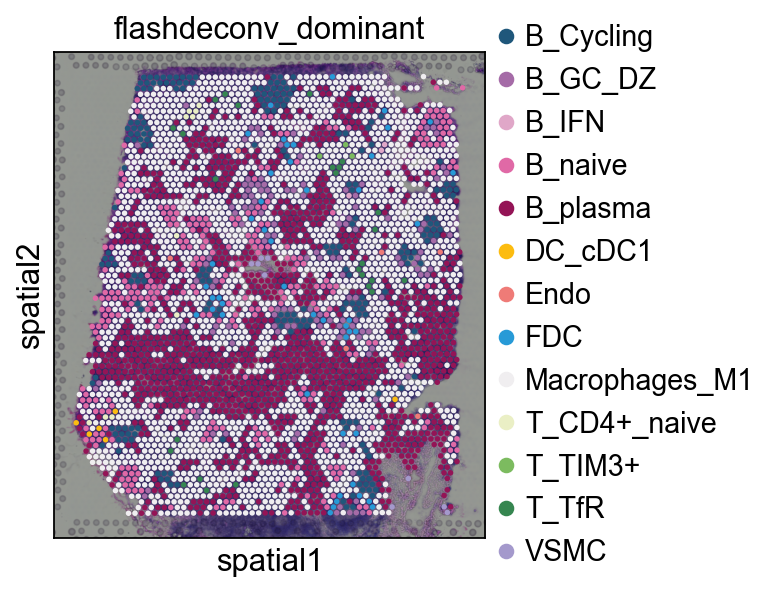

3.2 Dominant cell type visualization

# Plot dominant cell type per spot
sc.pl.spatial(
    decov_obj.adata_sp,
    color='flashdeconv_dominant',
    size=1.3,
    img_key='hires',
)
../_images/e0f7f5b7f77cbf0daf7647c6459b5334bc0b84b34b7c45d5f1cfa98b6cb8a91f.png

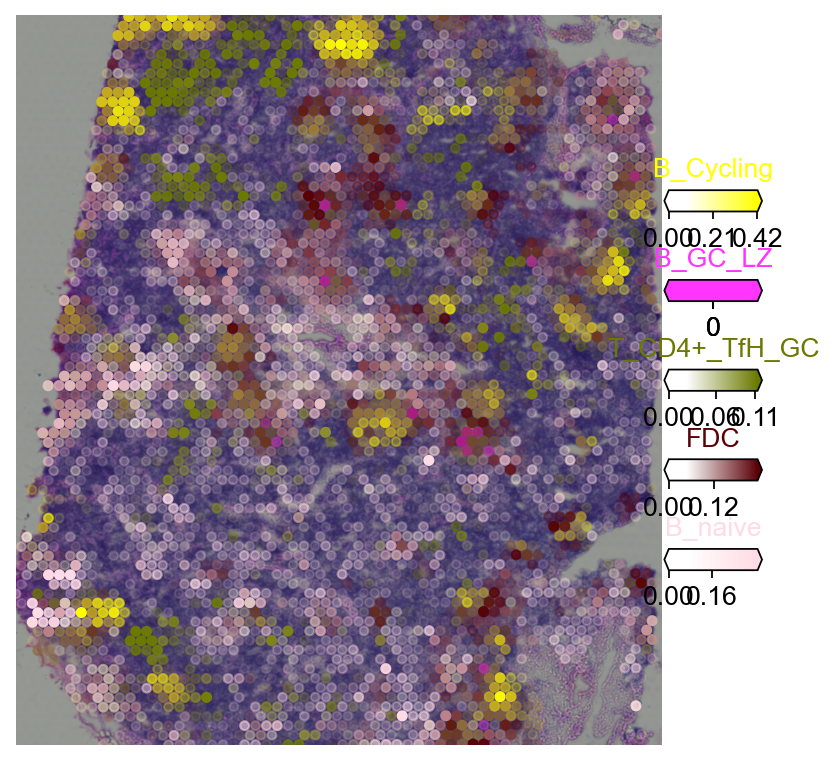

3.3 Multi-target overlay

import matplotlib as mpl

# Create color dictionary from reference
if 'Subset_colors' in adata_sc.uns:
    color_dict = dict(zip(
        adata_sc.obs['Subset'].cat.categories,
        adata_sc.uns['Subset_colors']
    ))
else:
    color_dict = None

clust_labels = annotation_list[:5]

with mpl.rc_context({'figure.figsize': (6, 6), 'axes.grid': False}):
    fig = ov.pl.plot_spatial(
        adata=decov_obj.adata_cell2location,
        color=clust_labels,
        labels=clust_labels,
        show_img=True,
        style='fast',
        max_color_quantile=0.992,
        circle_diameter=4,
        colorbar_position='right',
        palette=color_dict
    )
../_images/d51427e04df91bec776206b8fc2b9f3665f992a3fb24b388efd09a4450d526bc.png

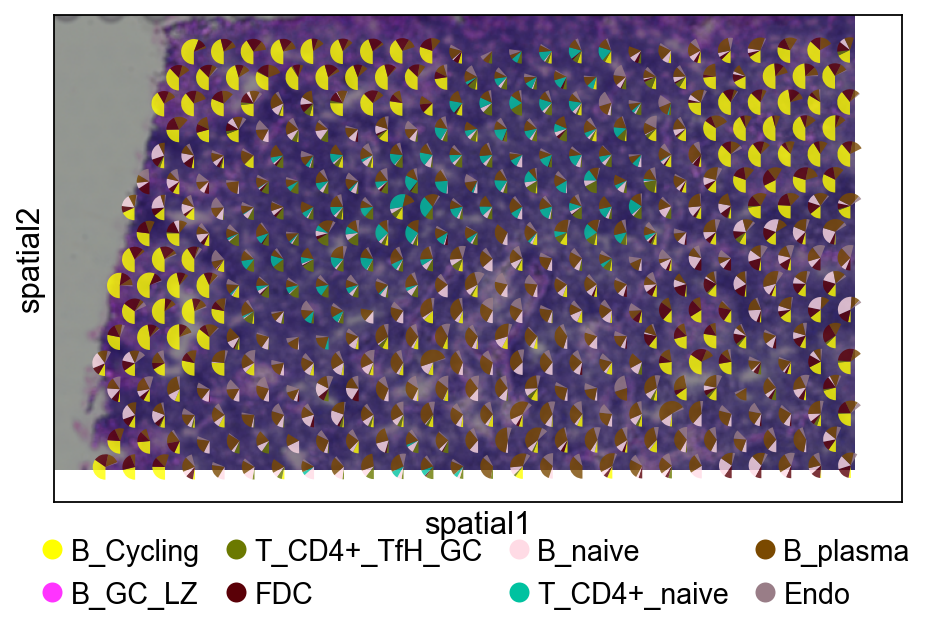

3.4 Pie chart visualization (cropped region)

# Crop a region of interest
adata_cropped = ov.space.crop_space_visium(
    decov_obj.adata_cell2location,
    crop_loc=(0, 0),
    crop_area=(500, 1000),
    library_id=list(decov_obj.adata_cell2location.uns['spatial'].keys())[0],
    scale=1
)

# Plot with pie charts
fig, ax = plt.subplots(figsize=(8, 4))
sc.pl.spatial(
    adata_cropped,
    basis='spatial',
    color=None,
    size=1.3,
    img_key='hires',
    ax=ax,
    show=False
)

ov.pl.add_pie2spatial(
    adata_cropped,
    img_key='hires',
    cell_type_columns=annotation_list,
    ax=ax,
    colors=color_dict,
    pie_radius=10,
    remainder='gap',
    legend_loc=(0.5, -0.25),
    ncols=4,
    alpha=0.8
)
plt.show()

Adding image layer `image`
../_images/935ee980cf192f8ebdd769122be1e5e5f0db7128f9df5f345d105a3eafa5b179.png

Comparison: FlashDeconv vs Other Methods

Feature

FlashDeconv

Tangram

cell2location

GPU Required

No

Optional

Recommended

Speed (10k spots)

~2 min

~15 min

~60 min

Visium HD Support

Yes (native)

Limited

Limited

Spatial Regularization

Built-in

No

No

API Style

scanpy-like

Custom

Custom

Tips and Troubleshooting

Parameter Tuning

  • For noisy/sparse data: Increase lambda_spatial (e.g., 10000)

  • For dense data (Visium HD 2μm): Increase sketch_dim (e.g., 1024)

  • For better accuracy: Increase n_hvg (e.g., 3000)

Common Issues

  1. Few overlapping genes: Ensure gene names match between spatial and reference data

  2. Missing spatial coordinates: Check adata.obsm['spatial'] exists

  3. Memory issues with large data: FlashDeconv is memory-efficient, but for very large datasets, consider subsetting

Citation

If you use FlashDeconv in your research, please cite:

Yang, C., Chen, J. & Zhang, X. FlashDeconv enables atlas-scale,
multi-resolution spatial deconvolution via structure-preserving sketching.
bioRxiv (2025). https://doi.org/10.64898/2025.12.22.696108

Also cite OmicVerse for the unified API:

Zeng, Z., et al. OmicVerse: a framework for bridging and accelerating
single-cell multiomics analysis with deep learning.
